Horizontal CNC Machining Services

Smith & Richardson's state-of-the art manufacturing facility features Mazak HCN5000 Horizontal Machining Centers with 20” X 20” X 26” work tables and pallet changer.  All our HMC’s are equipped with Renishaw Dual Probing Kits to allow for quicker tool setting times, in process tool breakage detection, and in process part measurement providing us with increased processing efficiencies translating into cost savings for you our customer. Pending the design of your parts, our CNC milling centers with their precision linear guide ways are capable of holding tolerances to .0002” as well as .001 degree NC table positioning for contouring.

We combine advanced precision milling capabilities with an expert staff that averages 15 years of industry experience. This unique combination results in the ability to deliver high precision and exceptional value to customers in a wide range of industries including medical, aerospace, sporting goods, transportation, flow controls and hydraulics to name a few.

Smith & Richardson's extensive milling experience includes precision Horizontal Machining of a variety of metals and alloys including but not limited to:

  • Aluminum
  • Brass
  • Stainless Steel
  • Steel
  • Hastelloy
  • Titanium
  • Tool Steels

Smith & Richardson's Vertical Machining Centers - Features and Benefits

  •  40 Taper,
  • Spindle speed 12,000 RPM,
  • 120 tool magazine capacity,
  • 2 Pallet changer,
  • X-axis 28”, Y-axis 28”, Z-axis 29”,
  • Renishaw Dual Probing to reduce set-up time,
  • Synchronized tapping,
  • High pressure coolant to allow quick chip removal,
  • 3D tool path check for more efficient set-ups,
  • Tool path solid model representation to minimize test cutting,
  • Machine layout to allow for quick changeovers,
  • Up to 120 tools to allow machining of complex parts,
  • Tool life management software to insure product quality

Click an Image Below to Enlarge

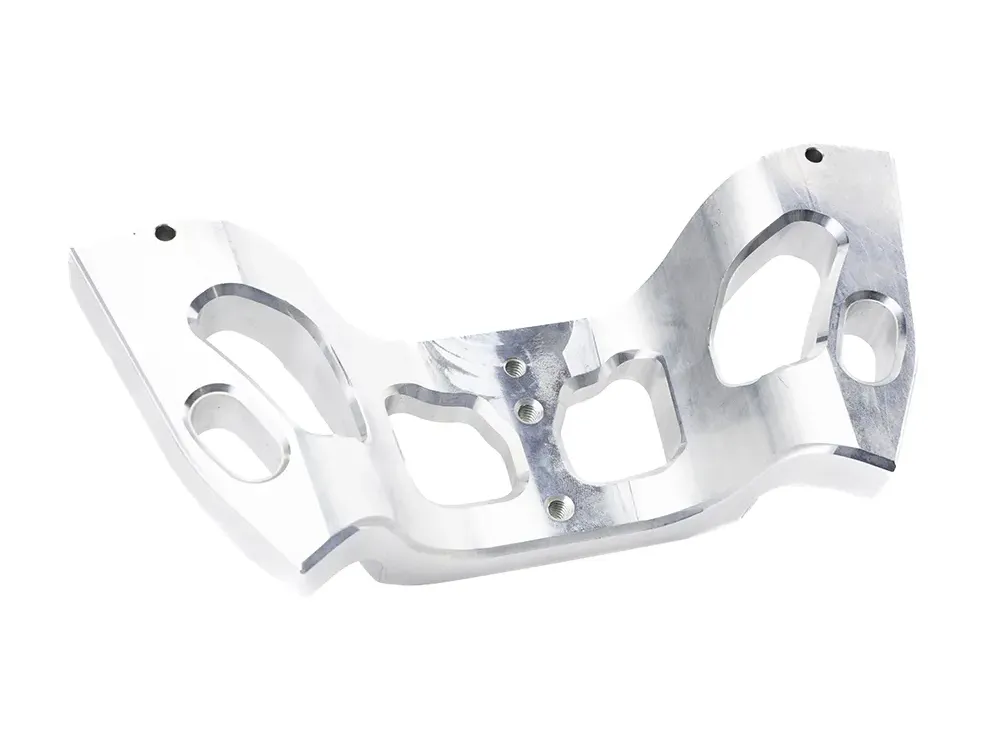

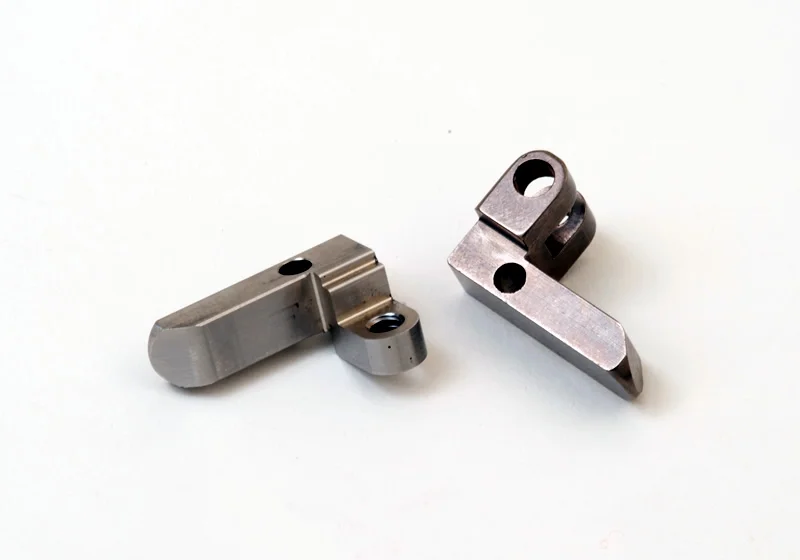

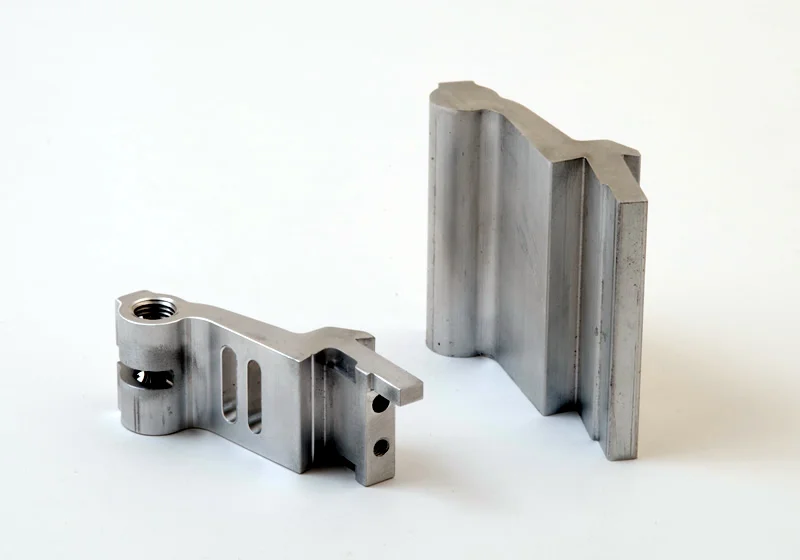

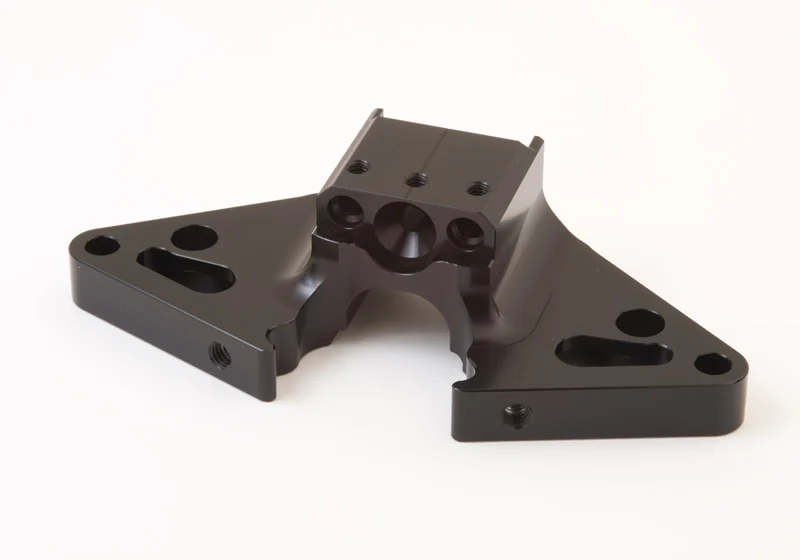

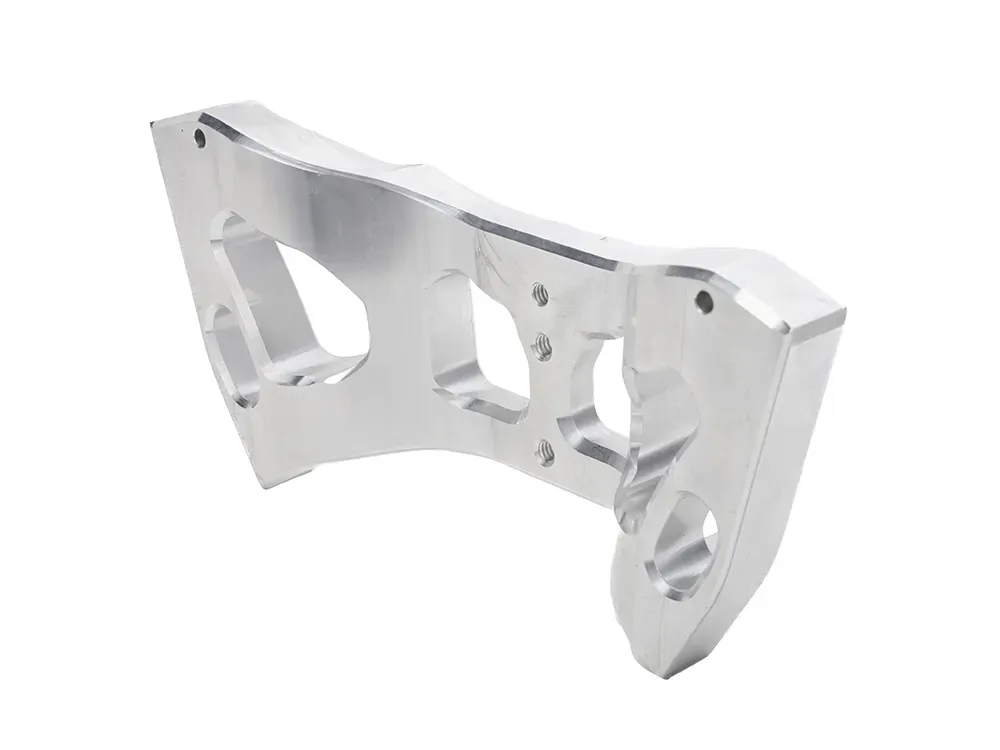

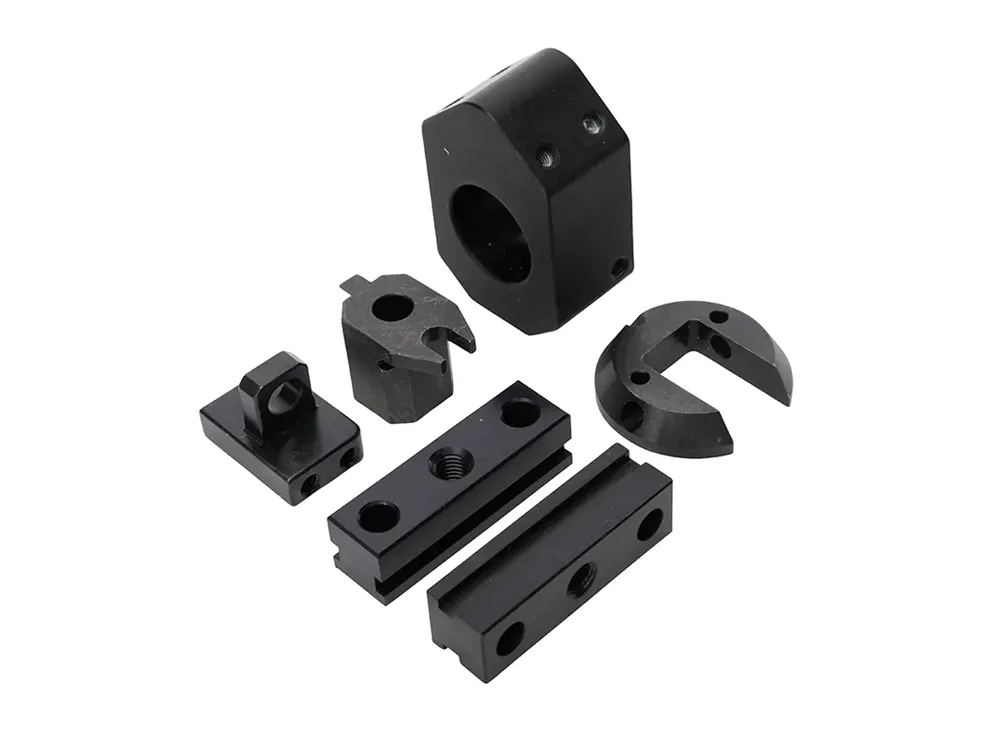

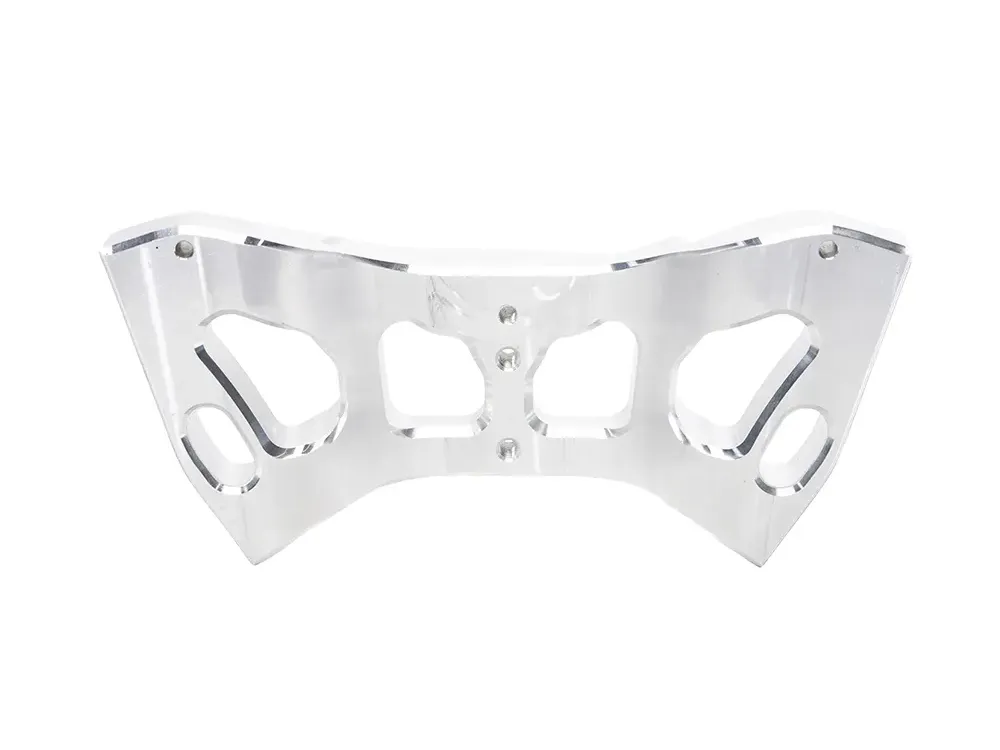

Precision Horizontal Machined PartsPrecision Horizontal Machined Parts

Precision Horizontal Machined Parts
