Perforated Metal Forms

Smith & Richardson has the ability to use perforated material in our slide forming machines.  We typically use a #6 perforation size, but we have the capability to make a custom perforation pattern.  We can then form the perforated material into your desired shape.  If additional notches, slots, or holes need to be added to the perforated pattern we can provide that as well.

We combine advanced slide forming capabilities with an expert staff that averages 20 years of industry experience.  We utilize our Global Manufacturing platform, Asian based along with US based tool room, and technology to produce tooling to manufacture precision slide form parts.  The benefits realized are low tooling cost and reduced production lead times.

We utilize a vast array of systems to support our production environment.  Quoting new precision slide formed parts is accomplished through Contract Review, new jobs are launched through our First Part Process, and production results are monitored through our operating system.  Control Plans or other quality system requirements are integrated to ensure your specifications are met.

This unique combination results in the ability to deliver high precision and exceptional value to customers in a wide range of industries including foundry, aerospace, transportation, and armaments.

Perforated forms can be used in the following applications:

  • Screens
  • Filters
  • Air-permeable shapes
  • Light support applications
  • Your custom design

We can work with most metals, including:

  • Aluminum
  • Brass
  • Stainless steel
  • Steel
  • Phosphor bronze
  • Pre-plated materials

Machine Capabilities

  • (2) #28 Multislides with press stations --- (1) #3 Four Slide
    • Material up to 1-1/2 inches wide
    • Feed lengths up to 15 inches
    • Multiple coil/strip feeding to allow dual part production
    • In line part number marking
    • In line stamping up to 20 tons capacity
    • Closed loop feed line to support high volume production

Click Image Below to Enlarge

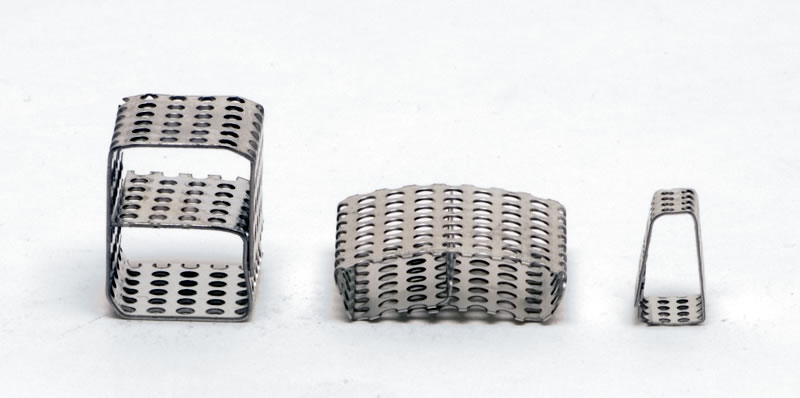

Perforated Metal Forms
