Motor Chaplets
Motor Chaplets are manufactured from mild steel, generally coated with tin and used in thin-walled casting. Non-Ferrous metals such as aluminum, copper, and stainless steel are available upon request.

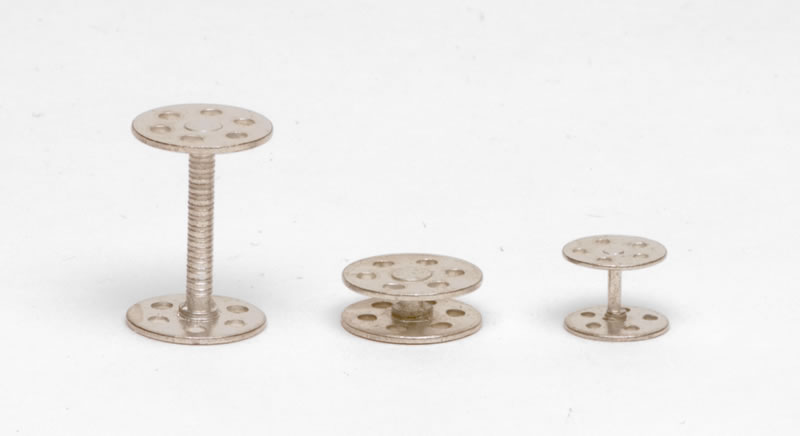

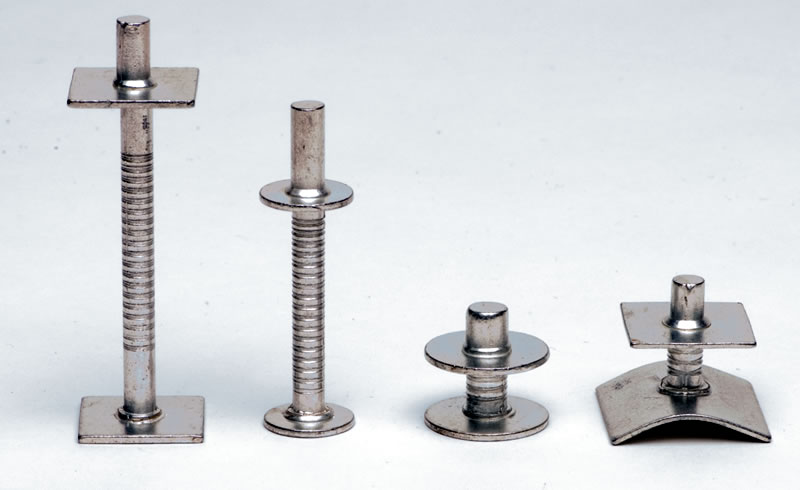

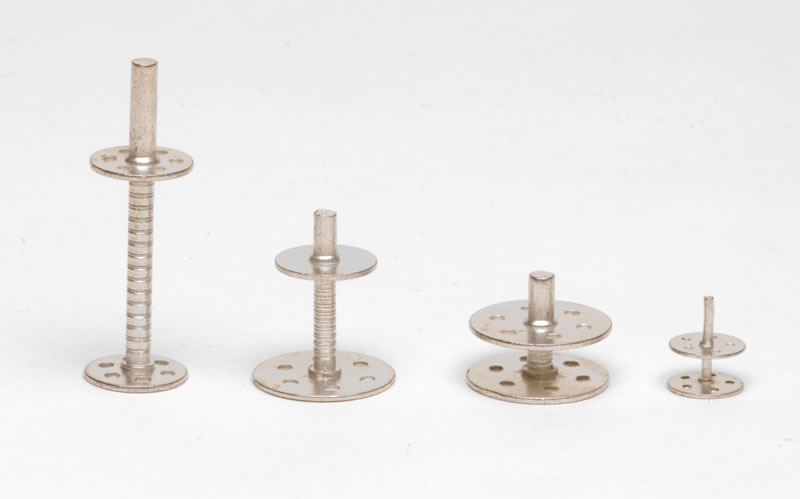

The information listed below details general characteristics on their dimensional design. These chaplets can have grooved or plain stems. Perforations pierced in the plates. Extensions or pins riveted or welded which protrude from the plates. The plate(s) can be curved to a specific radius. Additional design modifications can be integrated to meet your specifications.
Height can be produced from 3/16”-4,5 to 3”-76,2.
| Fractional | Decimal | Gage | Metric |
| 3/64″ | .0475 | #18 | 1,2 |
| 1/16” | .0625 | #16 | 1,6 |
| N/A | .0720 | #15 | 1,8 |
| 3/32” | .0890 | #13 | 2,3 |
| 1/8” | .1200 | #11 | 3,0 |
| N/A | .1350 | #10 | 3,4 |
| N/A | .1680 | #9 | 4,3 |
| 3/16” | .1770 | #7 | 4,5 |
| ¼” | .2253 | #4 | 5,7 |
Standard Plate Sizes – Note Plate Sizes Not Listed Can Be Produced Upon Request
| Fractional | Decimal | Metric | Round/Square | Perforation |
| ¼” | .250 | 6,35 | Round Only | No |
| 5/16” | .312 | 7,92 | Round Only | No |
| 3/8” | .375 | 9,52 | Yes | Yes |
| ½” | .500 | 12,7 | Yes | Yes |
| 5/8” | .625 | 15,8 | Yes | Yes |
| ¾” | .750 | 19,0 | Yes | Yes |
| 1” | 1.00 | 25,4 | Yes | Yes |
| 1-1/4” | 1.25 | 31,7 | Yes | Yes |
| 1-1/2” | 1.50 | 38,1 | Yes | Yes |
